V8-2SN16

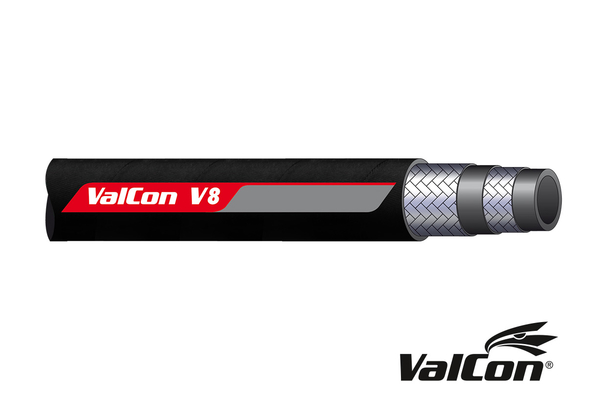

Valcon® Braided hose V8-2SN (EN 853 - 2SN)

Product info

• Technical data

  DN:	16
  Size:	10
  Inch:	5/8
  bending radius [mm]:	200
  working pressure [bar]:	250
  burst pressure [bar]:	1000
  Safety factor:	4:1

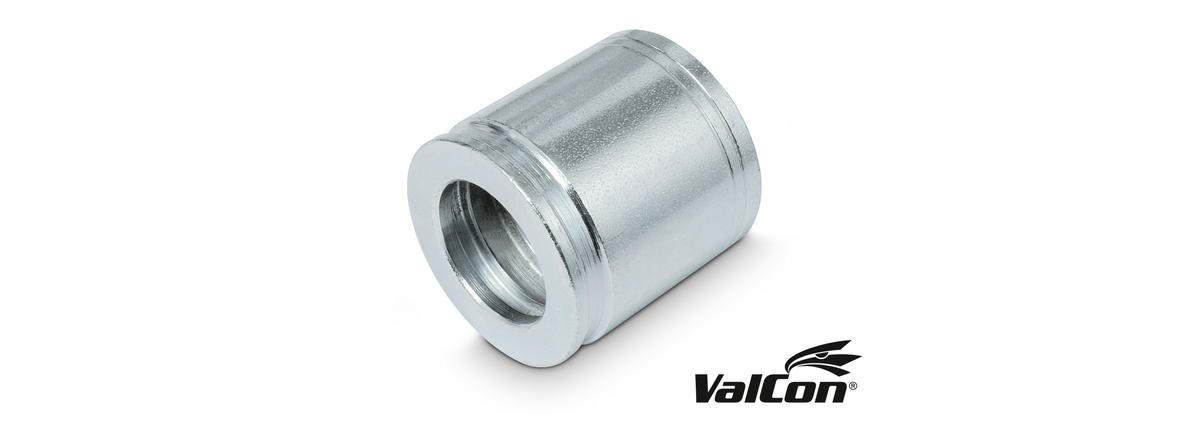

  Standard ferrule:	VC1-10
  Static test pressure [bar]:	500
  Outer Ø max. [mm]:	26,2
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Hydraulic oil based on mineral oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	EN 853 - 2SN
  Reinforcement:	High tensile steel wire braid
  Temperature range [°C]:	-40 °C to + 100 °C, water and water-based media up to + 70 °C
  application:	high pressure applications
  max operating temperature [°C]:	+100°C
  number of layers:	2
