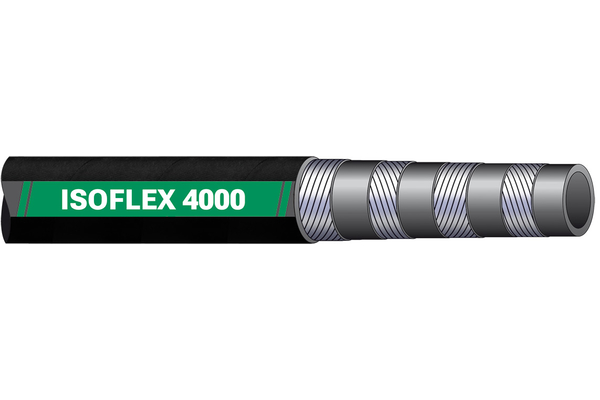

ISOFLEX4000-50
ISOFLEX4000

Product info

• Technical data

  DN:	51
  Size:	32
  Inch:	2
  Outer Ø [mm]:	64,7
  Inner Ø [mm]:	51,0
  bending radius [mm]:	318
  working pressure [bar]:	280
  burst pressure [bar]:	1120
  Safety factor:	4:1
  Standard ferrule:	HAI32-4
  Weight [kg]:	4,00
  Static test pressure [bar]:	560
  Additional information:	ISO 18752 / CC EXCEEDS EN 856 4SH
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber resistant to abrasion, ozone and hydrocarbons
  Inner tube:	Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request.
  MSHA-Approval:	yes
  Media:	Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	ISO 18752
  Note:	No-Skive-System. Der Schlauch muss nicht geschält werden.
  Reinforcement:	High-tensile steel wire
  Temperature range [°C]:	-40°C + 120°C
  application:	Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius.
  max operating temperature [°C]:	+120°C
  number of layers:	4 layers
