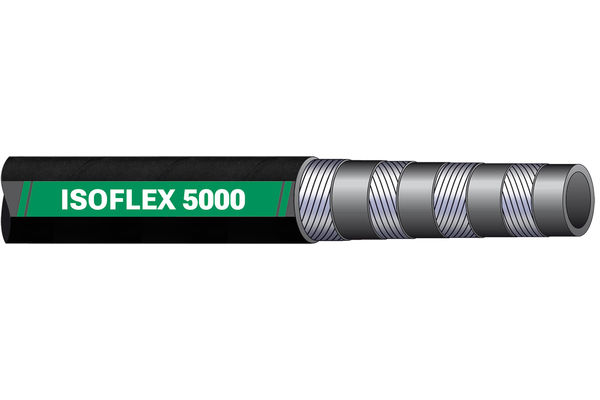

Spiral Hose ISOFLEX 5000

Highly flexible unibar multi-spiral hose according to ISO 18752 with extremely small bending radius. Easy handling and simple installation thanks to the low weight.

To accessories

Detail

Art. No.

ISOFLEX5000-20

ISOFLEX5000-25

ISOFLEX5000-32

ISOFLEX5000-50

ISOFLEX5000-40

Size

Inch

3/4

1.1/4

1.1/2

Outer Ø [mm]

29,4

37,4

44,0

68,7

54,8

Inner Ø [mm]

19,0

32,0

51,0

38,0

bending radius [mm]

120

150

210

318

250

working pressure [bar]

350

burst pressure [bar]

1400

Safety factor

4:1

Standard ferrule

HAI12-4

HAI16-4

HAI20-4

HAI32-4-6

HAI24-4-6

Weight [kg]

1,166

1,634

2,214

5,787

3,924

Static test pressure [bar]

700

Inner diameter min [mm]

25,0

Quantity

Product info

Technical data

Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber resistant to abrasion, ozone and hydrocarbons
Inner tube:	Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request.
MSHA-Approval:	yes
Media:	Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions
Norm/Standards:	ISO 18752 - EXCEEDS SAE 100 R15
Reinforcement:	High-tensile steel wire
Temperature range [°C]:	-40°C + 120°C
application:	Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius.
max operating temperature [°C]:	+120°C
number of layers:	4 or 6 layers

Accessories

STOPFLEX APS protective hose TEXS with velcro

Practical tip

When installing the hose line, make sure that the minimum bending radii are taken into account. If they are not met, the service life may be considerably reduced.
