Product info
-
Technical data

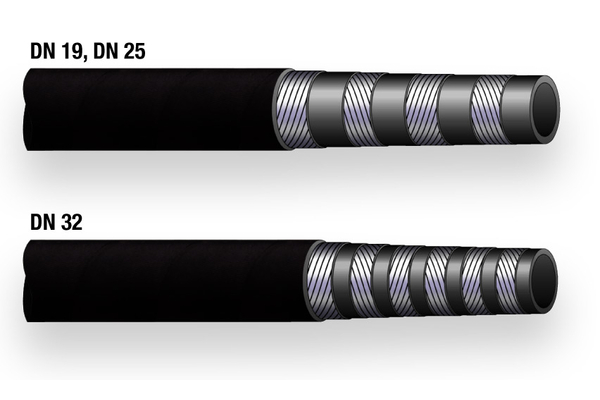

DN: 25 Size: 16 Inch: 1 Outer Ø [mm]: 38,2 Inner Ø [mm]: 25,0 bending radius [mm]: 150 working pressure [bar]: 420 burst pressure [bar]: 1680 Safety factor: 4:1 Standard ferrule: HAI16-4; HAN4-16 Weight [kg]: 1,429 Static test pressure [bar]: 840 Additional information: ISO 18752 / CC

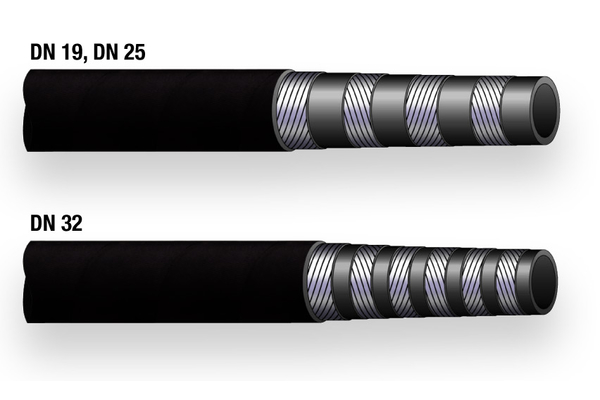

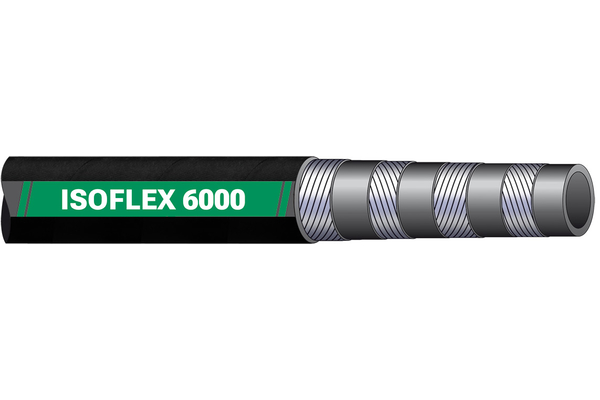

EXCEEDS EN 856 4SH - SAE 100 R15Color cover: black Color inner tube: black Cover: Synthetic rubber resistant to abrasion, ozone and hydrocarbons Inner tube: Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request. MSHA-Approval: yes Media: Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions Norm/Standards: ISO 18752 - EXCEEDS SAE 100 R15 Reinforcement: High-tensile steel wire Temperature range [°C]: -40°C + 120°C application: Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius. max operating temperature [°C]: +120°C number of layers: 4 or 6 layers
