Product info
-
Technical data

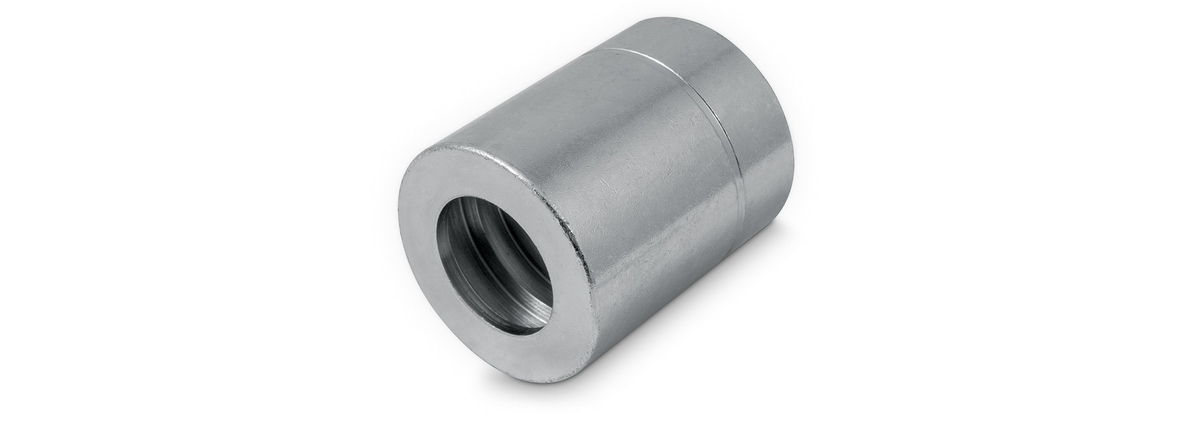

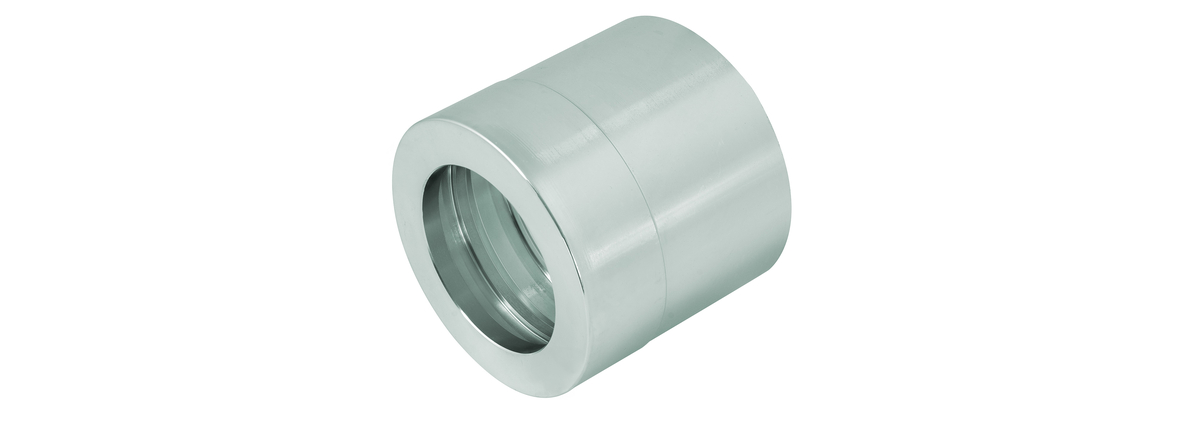

DN: 31 Size: 20 Inch: 1.1/4 Outer Ø [mm]: 49,3 Inner Ø [mm]: 32,0 bending radius [mm]: 225 working pressure [bar]: 420 burst pressure [bar]: 1680 Safety factor: 4:1 Standard ferrule: HAI20-4-6; HAN6-20 Weight [kg]: 1,991 Static test pressure [bar]: 840 Additional information: ISO 18752 / CC

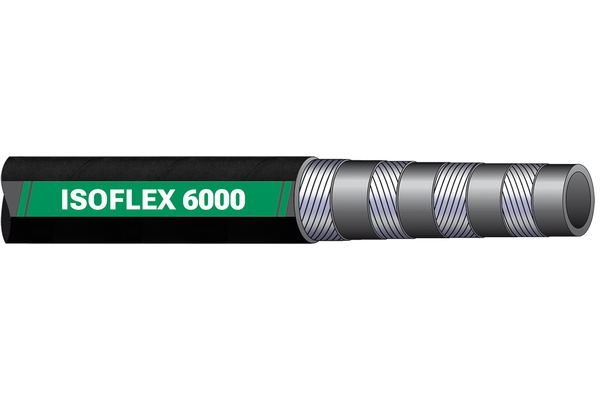

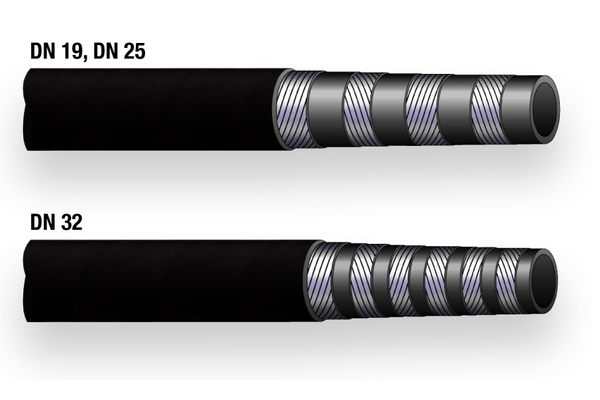

EXCEEDS SAE 100 R15Color cover: black Color inner tube: black Cover: Synthetic rubber resistant to abrasion, ozone and hydrocarbons Inner tube: Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request. MSHA-Approval: yes Media: Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions Norm/Standards: ISO 18752 - EXCEEDS SAE 100 R15 Reinforcement: High-tensile steel wire Temperature range [°C]: -40°C + 120°C application: Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius. max operating temperature [°C]: +120°C number of layers: 4 or 6 layers
