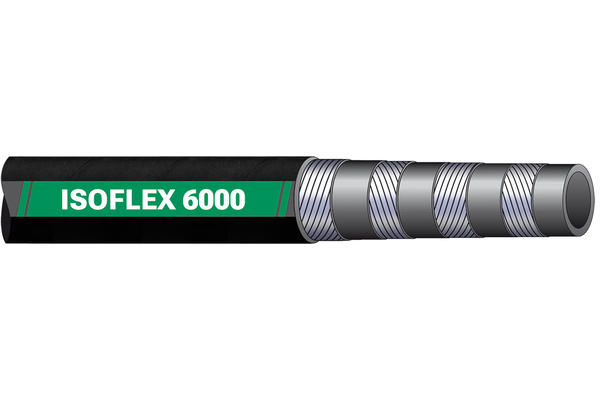

ISOFLEX6000-40
ISOFLEX6000

Product info

• Technical data

  DN:	38
  Size:	24
  Inch:	1.1/2
  Outer Ø [mm]:	54,4
  Inner Ø [mm]:	38,0
  bending radius [mm]:	305
  working pressure [bar]:	420
  burst pressure [bar]:	1680
  Safety factor:	4:1

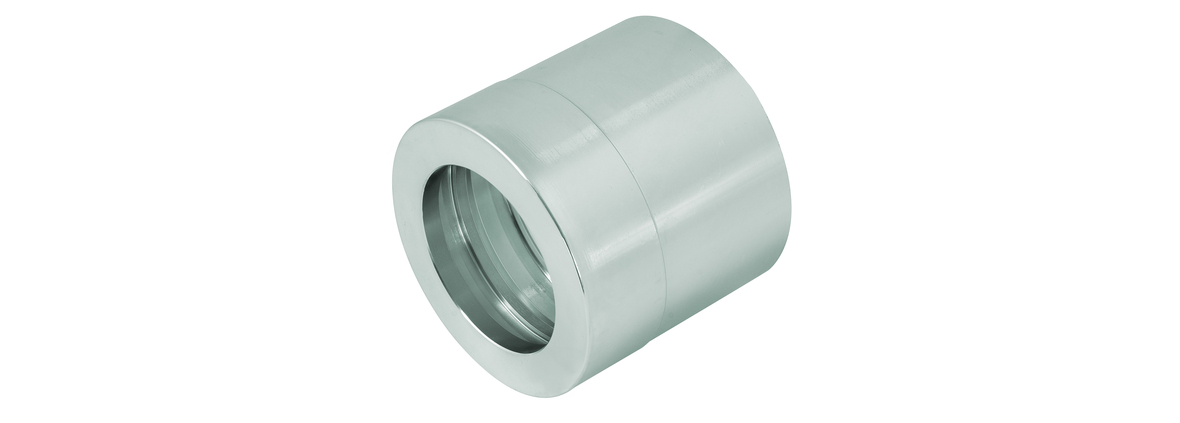

  Standard ferrule:	HAI24-4-6
  Weight [kg]:	4,155
  Static test pressure [bar]:	840
  Additional information:	ISO 18752 / CC EXCEEDS SAE 100 R15
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber resistant to abrasion, ozone and hydrocarbons
  Inner tube:	Synthetic rubber, resistant to hydraulic oils, lubricating oils and hydraulic fluids on mineral oil basis. Bio-oil resistance on request.
  MSHA-Approval:	yes
  Media:	Hydraulic oil on mineral oil basis, organic hydraulic oil, oil and water emulsions and aqueous glycol solutions
  Norm/Standards:	ISO 18752 - EXCEEDS SAE 100 R15
  Reinforcement:	High-tensile steel wire
  Temperature range [°C]:	-40°C + 120°C
  application:	Designed to withstand very demanding conditions. Very high performance in terms of working pressure, pulsation resistance and bending radius.
  max operating temperature [°C]:	+120°C
  number of layers:	4 or 6 layers
