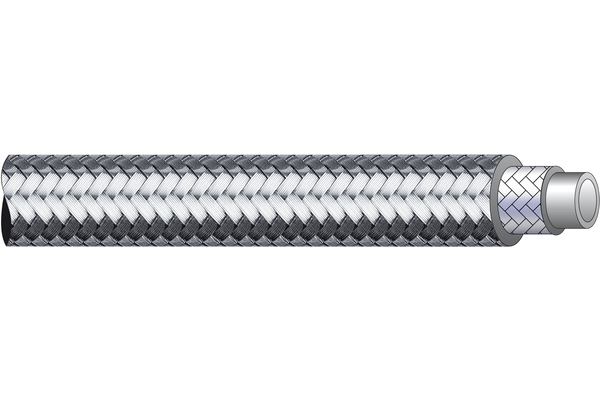

TEF5H20 - Double braided hose with smooth inner layer TEF5H

Product info

DN:	19
Size:	12
Inch:	3/4
Outer Ø [mm]:	25,5
bending radius [mm]:	203
working pressure [bar]:	125
burst pressure [bar]:	500
Safety factor:	4:1
Standard ferrule:	XV12P3W
Weight [kg]:	0,835
Color inner tube:	white
Inner tube:	Smooth, seamless extruded tube of PTFE
MSHA-Approval:	no
Media:	media compatibility on request
Note:	Working pressure is related to temperature. Please use pressure-temperature-curve to calculate allowed working pressure according to your application
Reinforcement:	Double stainless steel wire braid (AISI 304 / 1.4301)
Temperature range [°C]:	- 60 ° C to + 260 ° C; Resistance on request (technik@indunorm.de)
application:	Highly flexible delivery hose for applications in hydraulics and the use of aggressive and hot or cold liquids
max operating temperature [°C]:	+260
number of layers:	2

Benefit

"Very high operating pressures at proven advantages of PTFE tubing technology. As a problem-solving hose in the foundry industry applicable."

Practical tip

When using our special ferrules the usual masking of the dividing line with fabric tape can be dispensed. However, the ends should be secured during storage so that damage to the inner layer is prevented. By this method no danger to personnel is obtained.
