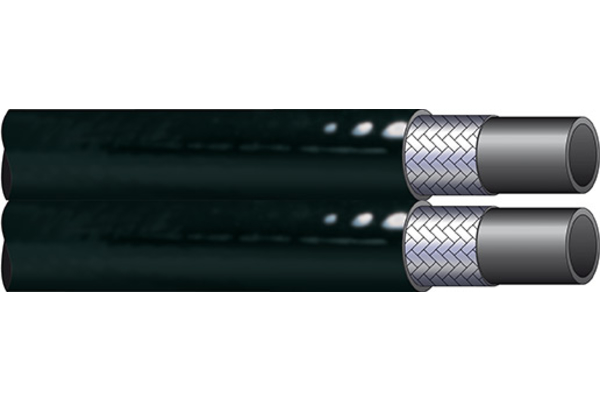

TP-R7-Z12 - Hose with pressure level according to SAE 100 R7 TP-R7-Z

DN:	12
Size:	08
Inch:	1/2
Outer Ø [mm]:	20,3
Inner Ø [mm]:	13,0
bending radius [mm]:	75
working pressure [bar]:	140
burst pressure [bar]:	560
Safety factor:	4:1
Standard ferrule:	XV08R2
Weight [kg]:	0,440
Static test pressure [bar]:	280
Vacuum [bar]:	0,93 bar; 700 mm Hg\|-13,5 psi; 27,5 inch Hg
Approvals:	MSHA
Color cover:	black
Color inner tube:	black
Cover:	Polyurethan, pin pricked
Inner tube:	Seamless extruded polyester tube (PEL)
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG)
Norm/Standards:	SAE 100 R7
Reinforcement:	Polyestervezels
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
application:	Construction and agricultural equipment, Agricultural brake systems, Forklift Trucks, Articulating and telescopic booms, Aerial platforms, Scissor lifts, Cranes, General hydraulics, Industrial gases
number of layers:	1/2

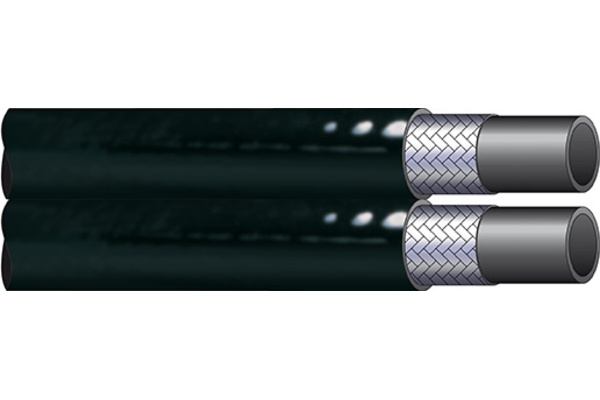

TP-R7-Z12
