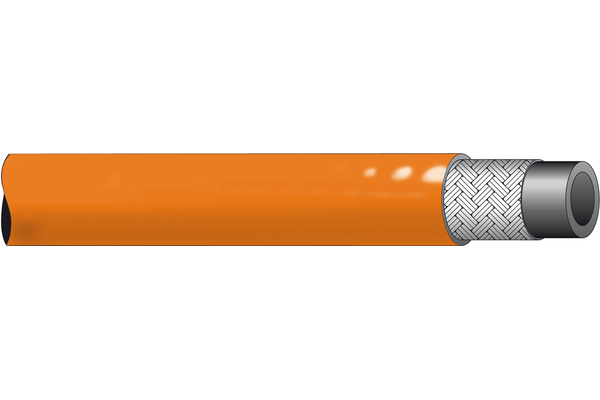

TP-R7NC (according to SAE 100 R7, non-conductive)

Non-Conductive Thermoplastic hose for high pressure applications, according to SAE 100 R7. Accurate control of your hydraulic system through maximum working pressure of the TP hoses. Our TP hoses are characterized by high resistance to weathering, aging and abrasion. Not suitable for gas applications!

To accessories

Detail

Art. No.

TP-R7-06NC

TP-R7-08NC

Size

Inch

1/4

5/16

Outer Ø [mm]

12,2

14,3

Inner Ø [mm]

6,5

8,1

bending radius [mm]

working pressure [bar]

210

190

burst pressure [bar]

840

760

Safety factor

4:1

Standard ferrule

XV04R1

XV05R1

Weight [kg]

0,067

0,087

Static test pressure [bar]

420

380

Vacuum [bar]

0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg

Quantity

Product info

Technical data

Color cover:	orange
Color inner tube:	black
Cover:	Polyurethan, non-conductive
Inner tube:	Seamless extruded polyester tube (PEL)
MSHA-Approval:	no
Media:	Mineral oils and fluids based on phosphate ester-based hydraulic oils
Norm/Standards:	SAE 100 R7
Reinforcement:	synthetic fiber
Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
max operating temperature [°C]:	+100°C
number of layers:	DN04+05 = 1 Layer, DN06-25 = 2 Layers
