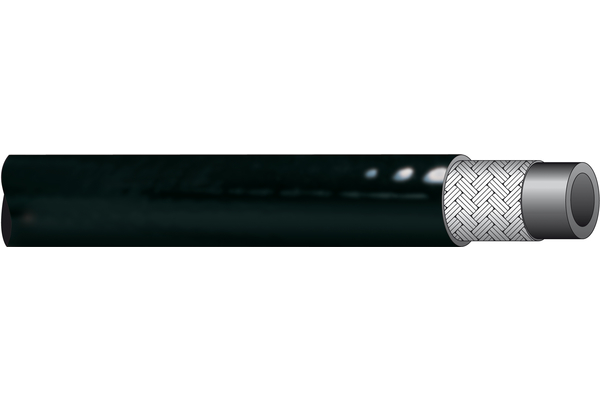

TP-R8-06
Hose with pressure level according to SAE 100 R8 TP-R8

Product info

• Technical data

  DN:	06
  Size:	04
  Inch:	1/4
  Outer Ø [mm]:	11,5
  Inner Ø [mm]:	6,5
  bending radius [mm]:	50
  working pressure [bar]:	350
  burst pressure [bar]:	1400
  Safety factor:	4:1
  Standard ferrule:	XV04R1
  Standard ferrule stainless steel:	XP-R7-04VA
  Weight [kg]:	0,100
  Static test pressure [bar]:	700
  Vacuum [bar]:	0,93 bar; 700 mm Hg|-13,5 psi; 27,5 inch Hg
  Color cover:	black
  Color inner tube:	black
  Cover:	Polyurethan, pin pricked
  Inner tube:	Seamless extruded polyester tube (PEL)
  Media:	Mineral oils and fluids based on phosphate ester-based hydraulic fluids, gas applications (does not apply to flammable gases, oxygen and LPG).
  Norm/Standards:	SAE 100R8 // EN855-R8 // ISO3949-R8
  Reinforcement:	One or two braids of aramid fiber / kevlar fiber
  Temperature range [°C]:	- 40 ° C to + 100 ° C, water and water-based media up to max. + 70 ° C
  max operating temperature [°C]:	+100°C
  number of layers:	1/2
