V8-MP08

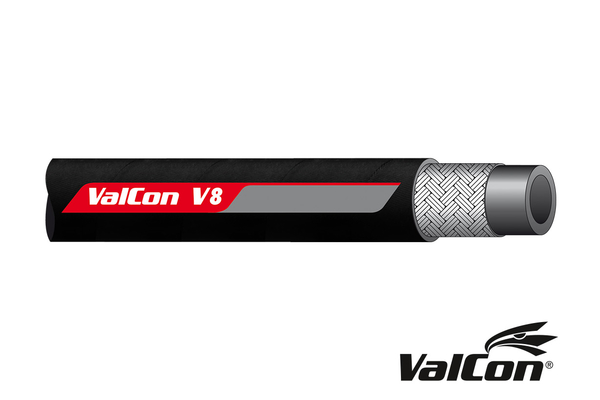

Valcon® Multipurpose hose V8-MP

Product info

• Technical data

  DN:	08
  Size:	5
  Inch:	5/16
  Outer Ø [mm]:	15,5
  Inner Ø [mm]:	7,9
  bending radius [mm]:	80
  working pressure [bar]:	20
  burst pressure [bar]:	60
  Safety factor:	3:1
  Standard ferrule:	XVTE05 / VC2-05
  Weight [kg]:	0,15
  Outer Ø max. [mm]:	15,5
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Water, oil, air, gasoline, fertilizers, herbicides
  Reinforcement:	Layer of synthetic fiber braid
  Temperature range [°C]:	-40°C to +100°C
  application:	Oil, fuel and gasoline hoses at automobile and gas stations
  max operating temperature [°C]:	+100°C
  number of layers:	1
