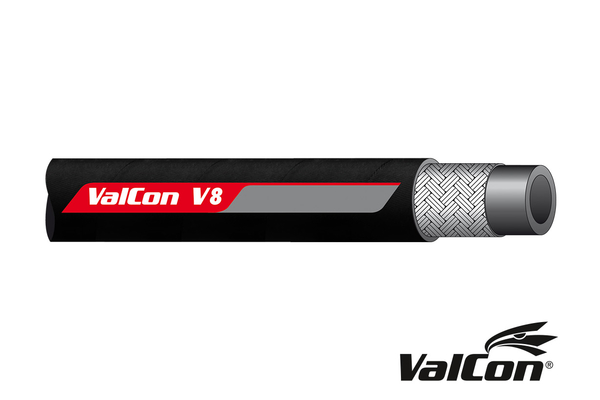

V8-MP10
Valcon® Multipurpose hose V8-MP

Product info

• Technical data

  DN:	10
  Size:	6
  Inch:	3/8
  Outer Ø [mm]:	17,5
  Inner Ø [mm]:	9,5
  bending radius [mm]:	100
  working pressure [bar]:	20
  burst pressure [bar]:	60
  Safety factor:	3:1
  Standard ferrule:	XVTE06 / VC2-06
  Weight [kg]:	0,16
  Outer Ø max. [mm]:	17,5
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Water, oil, air, gasoline, fertilizers, herbicides
  Reinforcement:	Layer of synthetic fiber braid
  Temperature range [°C]:	-40°C to +100°C
  application:	Oil, fuel and gasoline hoses at automobile and gas stations
  max operating temperature [°C]:	+100°C
  number of layers:	1
