S-1HWS08-M22X1,5-L20

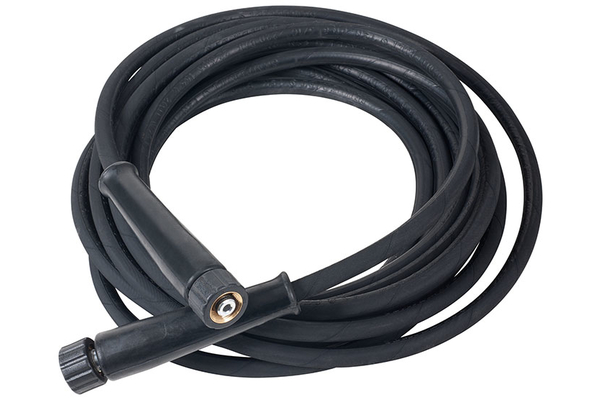

Pressure washer hose S-1HWS on both sides assembled

Art. No.: S-1HWS08-M22X1,5-L20

List number: 25056400

Assembled pressure washer hoseline S-1HWS

DN:	08
Size:	05
Inch:	5/16
bending radius [mm]:	115
working pressure [bar]:	210
burst pressure [bar]:	840
Safety factor:	4:1
Static test pressure [bar]:	420
hose length [m]:	20
Outer Ø max. [mm]:	15,7
Color cover:	black
Color inner tube:	black
Cover:	Synthetic rubber
Inner tube:	Synthetic rubber
MSHA-Approval:	no
Media:	Water, commercially available detergent
Norm/Standards:	EN 853 - 1SN
Reinforcement:	1 layer of high tensile steel wire
Temperature range [°C]:	-40°C to +150°C
application:	Hose line for pressure washer applications, e.g. Kärcher
max operating temperature [°C]:	+150°C
number of layers:	1
