V8-1HWS10

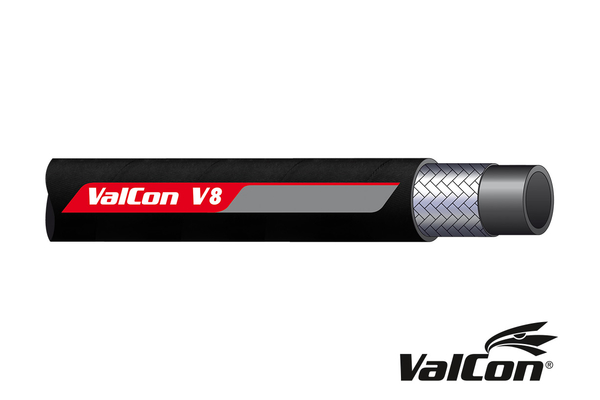

Valcon® Braided hose 1HWS (pressure washer hose)

Product info

• Technical data

  DN:	10
  Size:	6
  Inch:	3/8
  Outer Ø [mm]:	max. 17,4
  bending radius [mm]:	90
  working pressure [bar]:	280
  burst pressure [bar]:	840
  Safety factor:	3:1

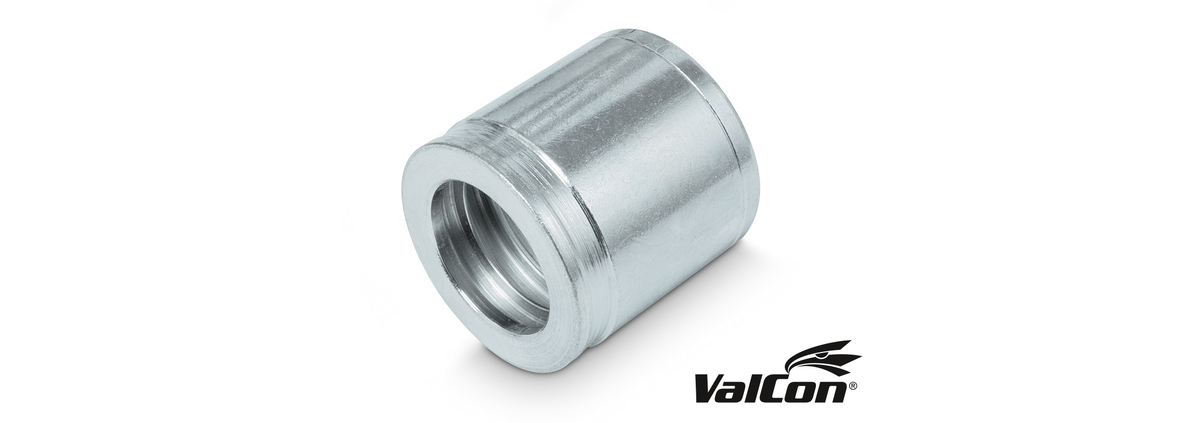

  Standard ferrule:	VC2-06
  Outer Ø max. [mm]:	max. 17,4
  Color cover:	black
  Color inner tube:	black
  Cover:	Synthetic rubber, wear resistant
  Inner tube:	Synthetic rubber
  MSHA-Approval:	no
  Media:	Water, commercially available detergent
  Reinforcement:	High tensile steel wire
  Temperature range [°C]:	-40°C to +150°C
  application:	Pressure washer applications, for hot and cold water, e.g. Kärcher
  max operating temperature [°C]:	+150°C
  number of layers:	1
