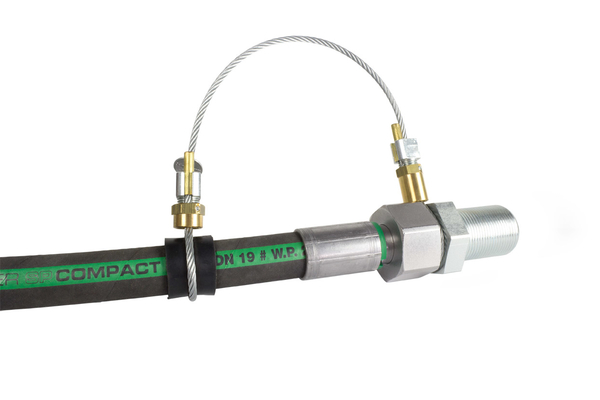

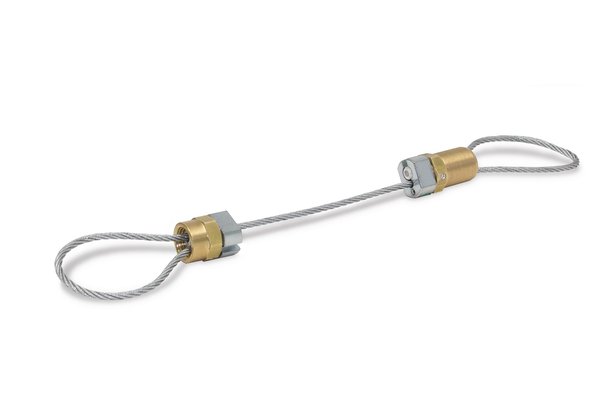

APS protection against whipping hose lines

Mit der Auspeitschsicherung (APS) von Indunorm sorgen Sie für ein Höchstmaß an Sicherheit, so wie es in der DIN EN ISO 4413 zum Schutz vor peitschenden Schlauchleitungen gefordert wird.

To accessories

Detail

Art. No.

APS11-19

APS17-28

APS23-31

APS26-35

APS34-44

APS38-52

APS44-61

APS56-74

for hose-DN

DN5 bis DN8

DN10 bis DN12

DN16

DN20

DN25

32 until 4SH

40 until 4SH

50 until 4SH

Size

03-05

Inch

1.1/4"

suitable for hose-outer-Ø [mm]

11 to 21

17 to 28

22 to 31

26 to 36

34 to 44

38 to 52

44 to 61

56 to 74

machine fixture OD [mm]

11 to 21

17 to 28

22 to 31

26 to 36

32 to 42

38 to 52

44 to 61

56 to 74

working pressure [bar]

450

420

350

310

270

Visible cable arc length [mm]

200 to 260

210 to 270

230 to 290

240 to 300

250 to 320

260 to 350

270 to 380

280 to 390

Ident length [mm]

450

500

550

640

700

780

840

920

Code letter

Quantity

Benefit

Increased safety of people and facilities. High back-up protection, as required by DIN EN ISO 4413 for protection against whipping hose lines. Subsequent assembly possible, the hose does not have to be dismounted!
