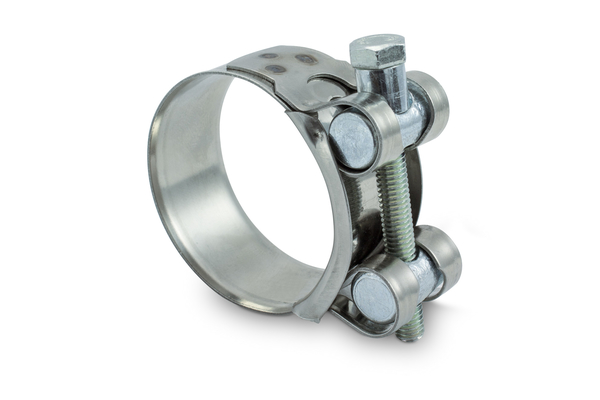

Hinge bolt clamp W2

Detail

SW [mm]
8
8
8
8
10
10
10
10
10
10
10
10
10
10
10
10
clamping range [mm]
17-19
20-22
23-25
26-28
29-31
32-35
36-39
40-43
44-47
48-51
52-55
56-59
60-63
64-67
68-73
74-79
band width [mm]
18
18
18
18
20
20
20
20
22
22
22
22
22
22
24
24
Quantity


Product info

  • Technical data
    Material: W2: band stainless steel AISI 430, housing and screw galvanised
    Standard: DIN 3017

Practical tip

Ensure functionality!
The tensile forces on the locknut when tightening are tremendous. To prevent the friction energy from “cold welding” the screw to the locknut, always treat the thread with a drop of oil, rust remover or similar when tightening.
