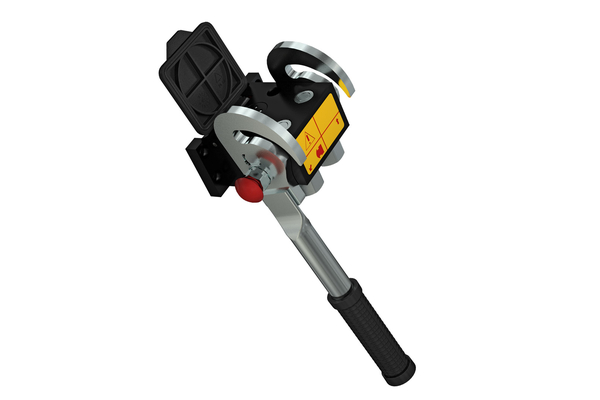

MST3-2-1E-08BSP10M

Product info

• Technical data

  Size:	06
  working pressure [bar]:	250
  Thread + standard:	BSP-female ISO 1179-1
  Thread [GA]:	G3/8"-19
  Number of hydraulic inserts:	2
  Number of electrical inserts:	1
  Series:	2P
  Manufacturer ID number:	2P306-1-2-12GFC
  l/min at ΔP=2 bar:	40
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	female
  Material:	Aluminium & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII) & Paint
  Temperature range [°C]:	-25°C / +100°C
