MST-E20CES12-10M

Product info

• Technical data

  DN:	10
  Size:	06
  Working pressure [bar]:	250
  Thread + standard:	Metric, Female thread, ISO 8434-1-S
  Thread [GA]:	M20x1,5
  Pipe Ø R [mm]:	12S
  Outer Ø sleeve [mm]:	30
  Length sleeve [mm]:	75,1
  Series:	2P
  Manufacturer ID number:	KIT2FNB38-3/20F
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	40
  Applications:	industry, agricultural technology , power units, construction machines
  Material:	Aluminium & Steel
  Material sealing:	NBR & PUR

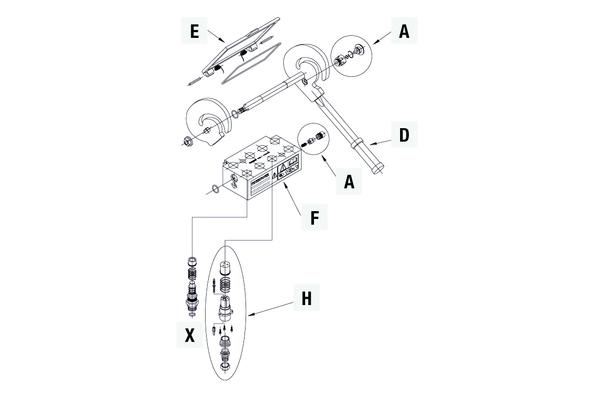

  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Temperature range [°C]:	-25°C / +100°C
