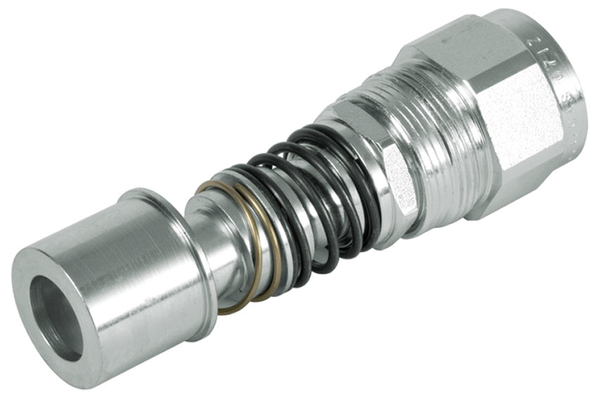

MST-E24CES16ZN12M
Coupling insert Zn-Ni

Product info

• Technical data

  DN:	12
  Size:	08
  Thread + standard:	CE male thread light Seriess, DIN 3861
  Thread [GA]:	M24x1,5
  Pipe Ø R [mm]:	16S
  Series:	2P
  Manufacturer ID number:	KIT2FNB12-3/247
  Applications:	industry, agricultural technology , power units, construction machines
  Designation:	X
  Female or male coupling:	sleeve
  Material:	Aluminium & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	.
  Temperature range [°C]:	-25°C / +100°C
