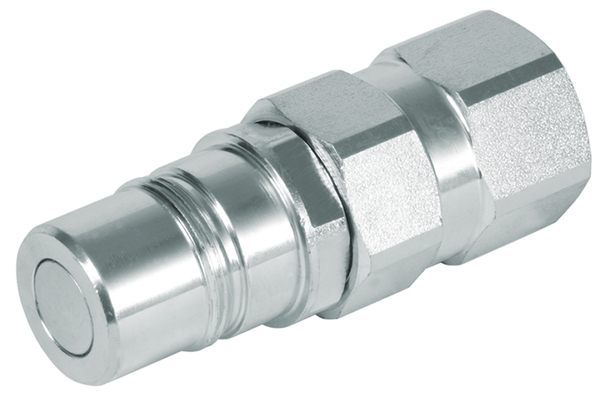

Coupling insert, male coupling

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system

To accessories

Detail

Art. No.

MST-E-H06BSP10S

MST-E-H08BSP10S

MST-E-H18CEL12-10S

MST-E-H22CEL15-10S

MST-E-H08BF10S

MST3E-H06BSP10S

MST3E-H08BSP10S

MST3E-H18CEL12-10S

MST3E-H22CEL15-10S

MST3E-H12UNF10S

Size

working pressure [bar]

250

Thread + standard

BSP female DIN 3852

CE male thread light Seriess, DIN 3861

BSP female DIN 3852

CE male thread light Seriess, DIN 3861

UNF female thread (SAE J1926-1)

Thread [GA]

3/8"

1/2"

M18x1,5

M22x1,5

1/2"

3/8"

1/2"

M18x1,5

M22x1,5

Pipe Ø R [mm]

12L

15L

12L

15L

Series

Manufacturer ID number

KIT2FNP38GAS M

KIT2FNP38-12G M

KIT2FNP38-2/18 M

KIT2FNP38-2/22M

KIT2FNP3820/12G

KIT3FNP38GAS M

KIT3FNP38-12G M

KIT3FNP38-2/18 M

KIT3FNP38-2/2215 M

KIT3FNP38-12SM

l/min at ΔP=2 bar

DN 10: 40l/min

Quantity

Product info

Technical data

Applications:	industry, agricultural technology , power units, construction machines
Designation:	X
Material:	Aluminum & Steel
Material sealing:	NBR & PUR
Resistance against red rust [h]:	500
Surface:	zinc plated, chrom 6-free
Temperature range [°C]:	-25°C /+100°C
