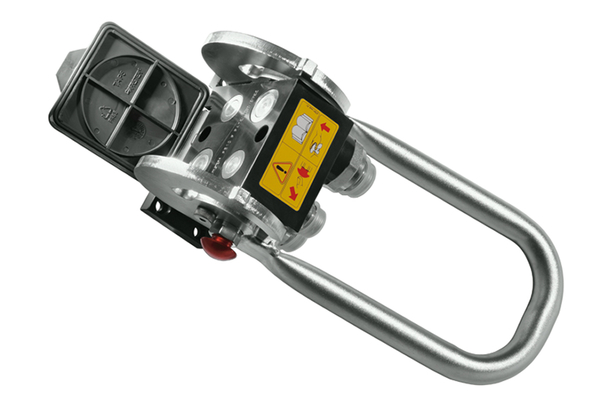

MST510-4H-12/17UNF-M
Multi coupling series MST510 DN12/19 Crlll (female)

Product info

• Technical data

  DN:	12 / 19
  Size:	08 / 12
  working pressure [bar]:	250
  Thread + standard:	UNF Female thread ORB ISO 11926-1
  Thread [GA]:	1-1/16"-12 UN , 3/4" - 16 UNF
  Number of hydraulic inserts:	4
  Series:	2P
  Manufacturer ID number:	2P510-4-N F C
  l/min at ΔP=2 bar:	DN12: 70; DN19: 105
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	sleeve
  Material:	Aluminium & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	Series MST510 DN12/19
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25°C / +100°C
