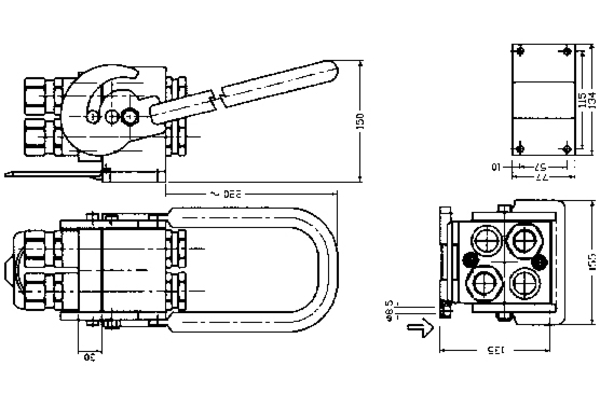

MST510-5-3P116UNF-S
Multi coupling series MST510 DN12/19 Cr III 3P (male)

Product info

• Technical data

  DN:	12/19
  Size:	8/12
  working pressure [bar]:	250
  Thread + standard:	UNF female thread
  Thread [GA]:	1.1/16"
  Number of hydraulic inserts:	2
  Series:	3P
  Manufacturer ID number:	3P510-2-34SMC
  max. number of electronic plugs:	2
  max. number of hydraulic plugs:	4
  l/min at ΔP=2 bar:	DN 12: 70 l/min, DN 19: 125 l/min
  Applications:	industry, agricultural technology , power units, construction machines
  Designation:	male
  Female or male coupling:	plug
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	.
  Resistance against red rust [h]:	500
  Surface:	zinc plated, chrom 6-free
  Temperature range [°C]:	-25°C /+100°C
