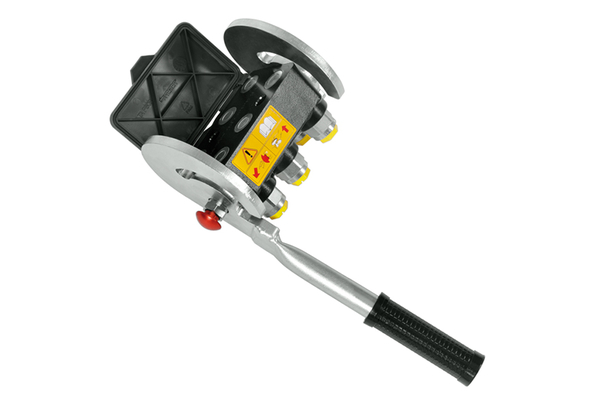

MST6-1E-5-08BSP-12M
Multi coupling series MST6 DN12 Cr III (female)

Product info

• Technical data

  DN:	12
  Size:	08
  working pressure [bar]:	250
  Thread + standard:	ISO 1179-1
  Thread [GA]:	G1/2"-14
  Number of hydraulic inserts:	5
  Number of electrical inserts:	1
  Manufacturer ID number:	2P608-A-5-12GFC
  max. number of electronic plugs:	1
  max. number of hydraulic plugs:	5
  l/min at ΔP=2 bar:	DN12: 70 l/min
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	sleeve
  Material:	Aluminium & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title short:	female coupling
  Surface:	MATE 500 (CrIII) & Paint
  Temperature range [°C]:	-25°C / +100°C
