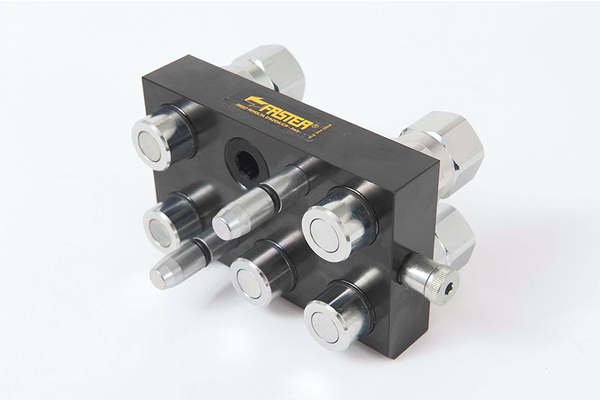

MST6-6H08BSP12S
Multi coupling series MST6 DN12 Cr III (male)

Product info

• Technical data

  DN:	12
  Size:	08
  working pressure [bar]:	250
  Thread + standard:	BSP female DIN 3852
  Thread [GA]:	1/2"
  Pipe Ø R [mm]:	-
  Number of hydraulic inserts:	6
  Series:	2P
  Manufacturer ID number:	2P608-6-12G MC
  max. number of electronic plugs:	2
  max. number of hydraulic plugs:	6
  l/min at ΔP=2 bar:	DN 12: 70 l/min
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	plug
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Maximum assignment of the multi-coupling:	6
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	Series MST6 DN12.
  Product title short:	male coupling
  Resistance against red rust [h]:	500 Std.
  Surface:	zinc plated, chrom 6-free
  Temperature range [°C]:	-25°C /+100°C
