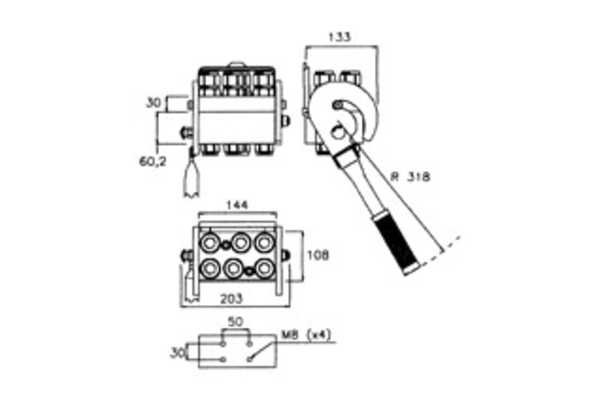

MST6-3P-W4CES16ZN12S

Product info

• Technical data

  DN:	12
  Size:	08
  working pressure [bar]:	250
  Thread + standard:	ISO 1179-1
  Thread [GA]:	G1/2"-14
  Number of hydraulic inserts:	4
  Number of electrical inserts:	2
  Series:	3P
  Manufacturer ID number:	3P608G-4-E M C
  l/min at ΔP=2 bar:	70
  Applications:	industry, agricultural technology , power units, construction machines
  Female or male coupling:	Plug
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Surface:	MATE 1000 (ZnNi) & Paint
  Temperature range [°C]:	-25°C /+100°C
