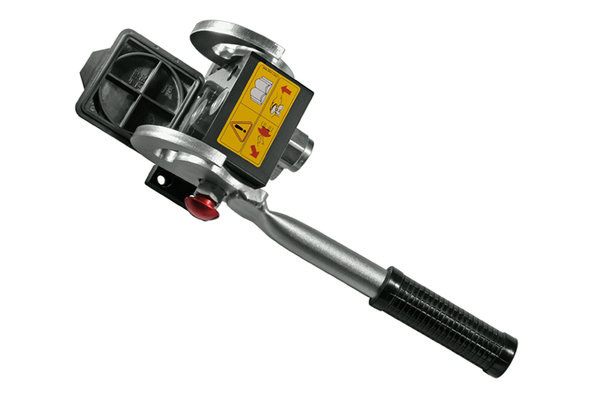

MSTN2 (P208) female coupling DN12 - Cr III

Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Can be coupled under residual pressure (up to 350 bar). Blocking on both sides, easy connecting and disconnecting via lever system

To accessories

Detail

Art. No.

MSTN2-2-08BSP12M

MSTN2-2-22CEL15-12M

MSTN2-2-08NMF-12M

MSTN2-2-12UNF-12M

MSTN2-2-12BSP12M

MSTN2-2-17UNF12M

MSTN2-3P2-08BSP12M

Size

working pressure [bar]

250

Thread + standard

BSP female DIN 3852

CE male thread light Seriess, DIN 3861

NPTF 1/2" FEMALE - ANSI B1.20.3

3/4" - 16 UNF FEMALE ORB - ISO 11926-1

BSPP 3/4" FEMALE - ISO 1179-1

1 - 1/16" - 12 UN FEMALE ORB - ISO 11926-1

BSPP 1/2" FEMALE - ISO 1179-1

Thread [GA]

1/2" BSP IG DIN 3852

M22x1,5

1/2"-14

3/4" - 16 UNF FEMALE ORB

BSPP 3/4" FEMALE

1.1/16"-12

G1/2"-14

Pipe Ø R [mm]

15L

Number of hydraulic inserts

Series

Manufacturer ID number

2P208-2-12G F C

2P208-2-2/22F C

2P208-2-12N F C

2P208-2-12S F C

2P208-2-34G F C

2P208-2-34S F C

3P208-2-12G F C

burst pressure coupled [bar]

100

max. number of hydraulic plugs

l/min at ΔP=2 bar

DN 12: 70 l/min

DN12: 70 l/min

Quantity

Product info

Technical data

Applications:	industry, agricultural technology , power units, construction machines
Female or male coupling:	sleeve
Material:	Aluminium & Steel
Material sealing:	NBR & PUR
Surface:	MATE 500 (CrIII) & Paint
Temperature range [°C]:	-25°C / +100°C
