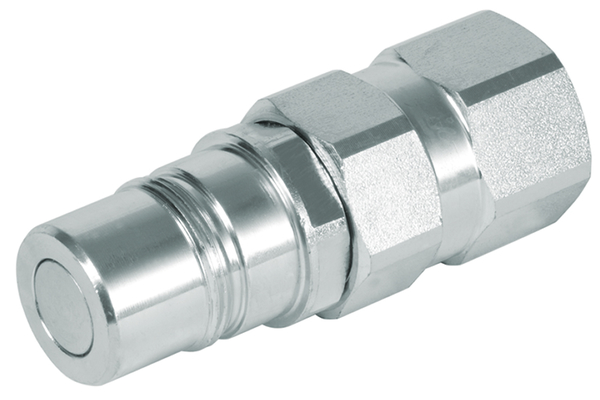

MST-E-H24CES16-12S
Coupling insert Cr III

Product info

• Technical data

  DN:	12
  Size:	08
  Thread + standard:	CE male thread heavy Seriess, DIN 3861
  Thread [GA]:	M24X1,5
  Pipe Ø R [mm]:	16S
  Series:	2P
  Manufacturer ID number:	KIT2FNP12-3/24M
  l/min at ΔP=2 bar:	DN 12: 70l/min
  Applications:	industry, agricultural technology , power units, construction machines
  Designation:	coupling insert
  Material:	Aluminum & Steel
  Material sealing:	NBR & PUR
  Note:	Multi coupling, Flat Face, few leakage oil, allows the connection of several hydraulic lines simultaneously. Connection allowed up to 60bar residual pressure (2P) and full working pressure in the 3P version.
  Product title long:	.
  Product title short:	hydraulic insert
  Temperature range [°C]:	-25°C /+100°C
