SK-CVC0-22M12M

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	340
  Thread + standard:	BSP female DIN 3852, with O-Ring Port
  Thread [GA]:	M22x1,5
  Outer Ø sleeve [mm]:	35,0
  Connection thread:	Rd35x2
  Length sleeve [mm]:	60,9

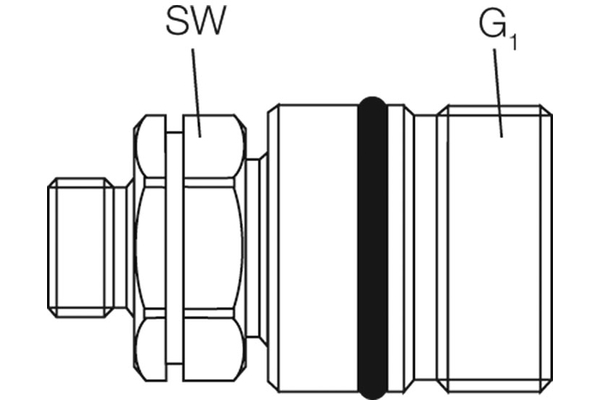

  Wrench size connection side sleeve:	27
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	50
  Material:	C-steel, nitrified
  Material support ring:	PTFE

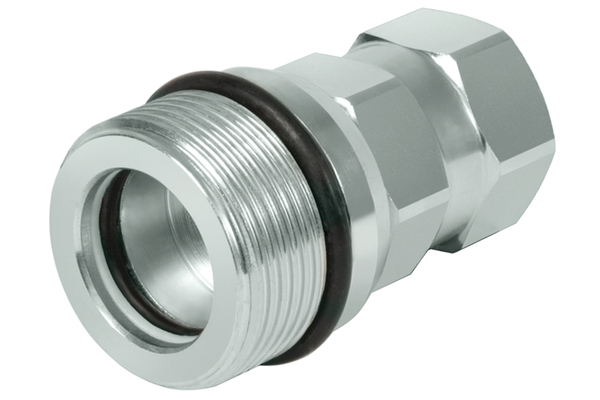

  Product title long:	. Series SK-CVC female coupling
  Product title short:	female coupling
