CVE 34 GAS F
Faster CVE-Sleeve

Product info

• Technical data

  DN:	20
  Size:	12
  working pressure [bar]:	360
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/4"

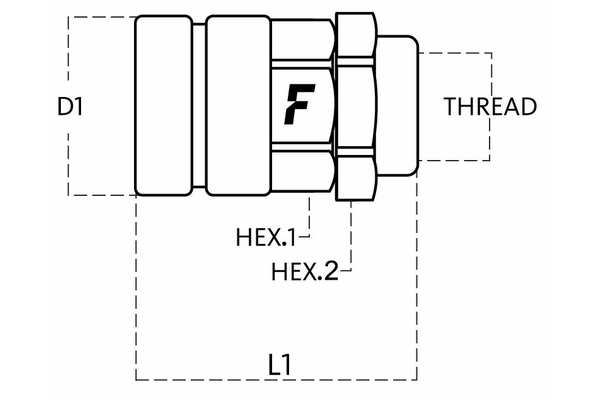

  Outer Ø sleeve [mm]:	51,0
  Length sleeve [mm]:	78,0
  SW [mm]:	46
  SW2 [mm]:	50
  SW1 [mm]:	46
  l/min at ΔP=2 bar:	120
  Applications:	Road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	NBR
  Resistance against red rust [h]:	500
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	-25 °C to 125 °C
