SK1-VV5-14CELS8-6M

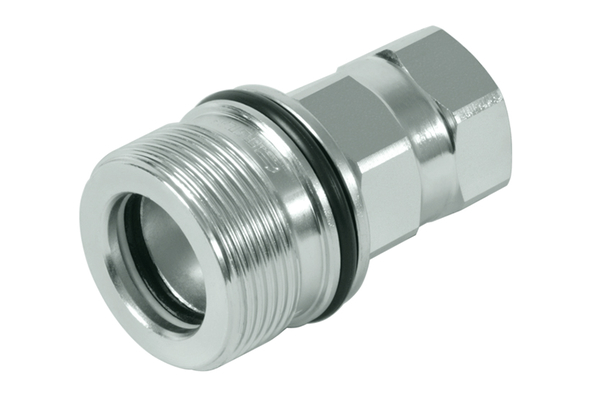

Screw coupling series SK-VSV (female)

Product info

• Technical data

  Size:	1
  DN:	06
  Size:	04
  Inch:	1/4
  working pressure [bar]:	500
  Thread + standard:	Metric bulkhead-thread short ISO 8434-1-L
  Thread [GA]:	M14x1,5
  Pipe Ø R [mm]:	8L
  Outer Ø sleeve [mm]:	24,0
  Connection thread:	24x2
  Length sleeve [mm]:	74,0

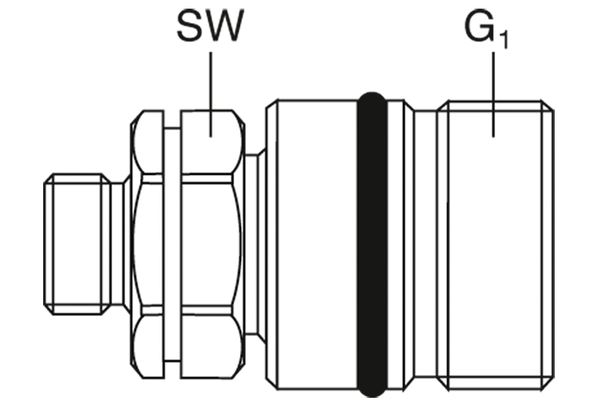

  SW2 [mm]:	19
  Can be coupled under pressure:	Allowed under residual pressure
  SW1 [mm]:	19
  l/min at ΔP=2 bar:	13
  Applications:	Construction Equipment, Vehicles & Road Machines, Agriculture
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	DN 06-10: NBR , DN 12-38: FKM (Viton(R))
  Material support ring:	PTFE
  Resistance against red rust [h]:	500
  Standard:	ISO 14541
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
