Product info
-
Technical data

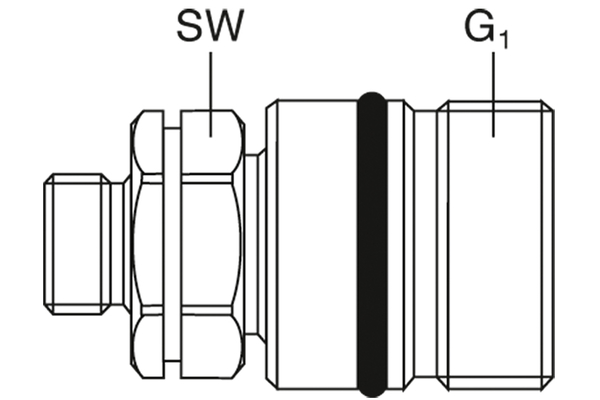

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 400 Thread + standard: Metric male-thread ISO 8434-1-L Thread [GA]: M16x1,5 Pipe Ø R [mm]: 10L Outer Ø sleeve [mm]: 28,0 Connection thread: 28x2 Length sleeve [mm]: 68,0 Can be coupled under pressure: Allowed under residual pressure SW1 [mm]: 24 l/min at ΔP=2 bar: 25 Applications: Construction Equipment, Vehicles & Road Machines, Agriculture Female or male coupling: Female Material Casing: Steel Material sealing: DN 06-10: NBR , DN 12-38: FKM (Viton(R)) Material support ring: PTFE Resistance against red rust [h]: 500 Standard: ISO 14541 Surface: MATE 500 (CrIII) Temperature range [°C]: FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
