Art. No.: SK2VV06BSP10M
List number: 23015300

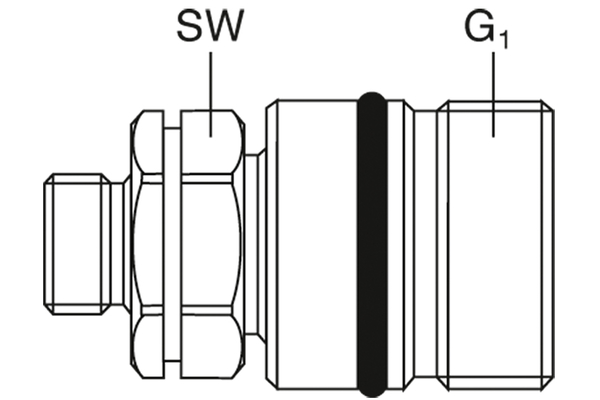

The VSV series quick couplings are suitable for various applications with high pressures, flow peaks and the ability to connect when there is residual pressure in the line. Interchangeable according to ISO 14541, characterized by a sealing system with a cone valve and sleeve with a screw connection.
| Size: | 2 |
| DN: | 10 |
| Size: | 06 |
| Inch: | 3/8 |
| working pressure [bar]: | 400 |
| Thread + standard: | BSP female-thread ISO 1179-1 |
| Thread [GA]: | 3/8 |
| Outer Ø sleeve [mm]: | 28,0 |
| Connection thread: | Rd28x2 |
| Length sleeve [mm]: | 71,0 |
| SW1 [mm]: | 24 |
| Can be coupled under pressure: | Allowed under residual pressure |
| SW1 [mm]: | 24 |
| l/min at ΔP=2 bar: | 25 |
| Material: | C-steel, nitrified |
| Material support ring: | PTFE |
| Product title long: | . |
Reserve technical changes.
