SK3VSV5-26CELS18-12M
Screw coupling series SK-VSV (female)

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	400
  Thread + standard:	Metric bulkhead-thread ISO 8434-1-L
  Thread [GA]:	M26x1,5
  Pipe Ø R [mm]:	18L
  Outer Ø sleeve [mm]:	40,0
  Connection thread:	36x2
  Length sleeve [mm]:	81,0

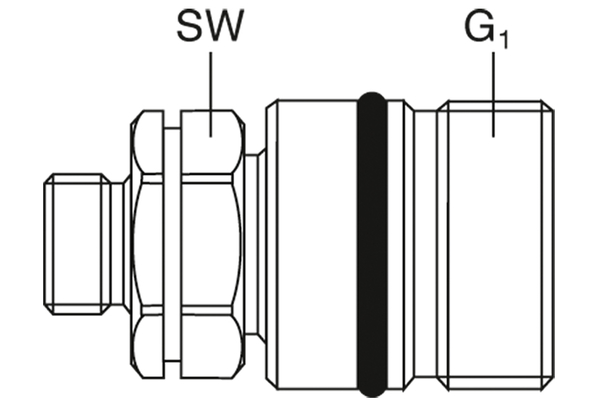

  SW2 [mm]:	36
  Can be coupled under pressure:	Allowed under residual pressure
  SW1 [mm]:	27
  l/min at ΔP=2 bar:	65
  Applications:	Construction Equipment, Vehicles & Road Machines, Agriculture
  Female or male coupling:	Female
  Material Casing:	Steel
  Material sealing:	DN 06-10: NBR , DN 12-38: FKM (Viton(R))
  Material support ring:	PTFE
  Product title long:	Series SK 3-8 VSV female coupling.
  Product title short:	female coupling
  Resistance against red rust [h]:	500
  Standard:	ISO 14541
  Surface:	MATE 500 (CrIII)
  Temperature range [°C]:	FKM: -25 °C up to +200 °C , NBR: -25 °C up to + 125 °C
