Product info
-
Technical data

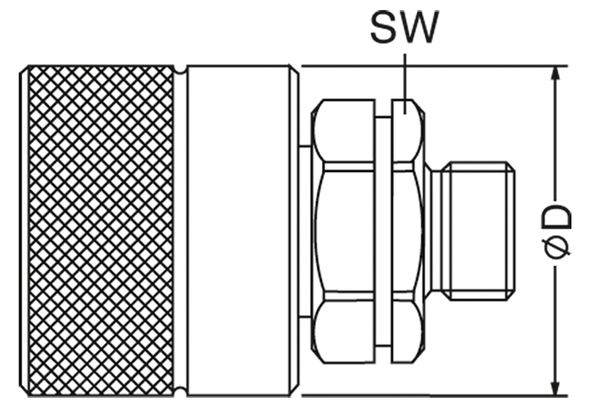

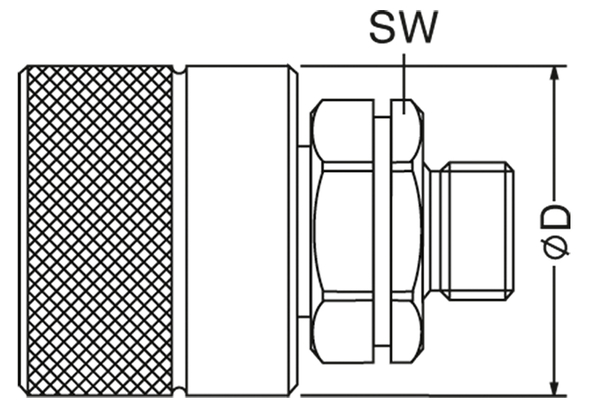

Size: 2 DN: 10 Size: 06 Inch: 3/8 working pressure [bar]: 400 Thread + standard: BSP female-thread ISO 1179-1 Thread [GA]: 3/8 Outer Ø sleeve [mm]: 34,0 Connection thread: 28x2 Length plug [mm]: 70,0 SW1 [mm]: 24 Can be coupled under pressure: Allowed under residual pressure SW1 [mm]: 24 l/min at ΔP=2 bar: 25 Material support ring: PTFE
