SK-FHV-24SAE44-40M
SK-FHV (female)

Product info

• Technical data

  Size:	8
  DN:	40
  Size:	24
  Inch:	1.1/2
  working pressure [bar]:	460
  Thread + standard:	Metric flange ISO 6162-1
  Thread [GA]:	1.1/2

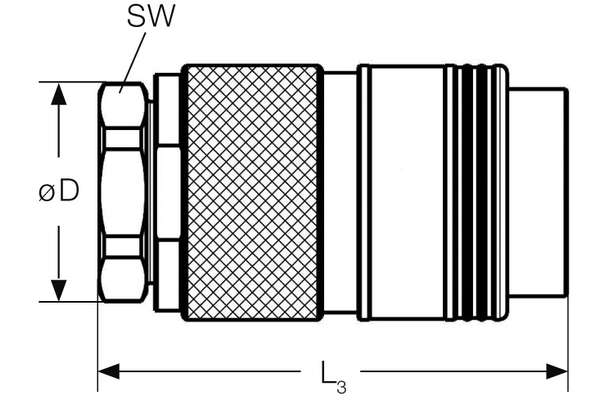

  Outer Ø sleeve [mm]:	113,3
  Length sleeve [mm]:	192,0
  SW2 [mm]:	65
  SW1 [mm]:	95
  l/min at ΔP=2 bar:	420
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Product title long:	.
  Resistance against red rust [h]:	1000
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
