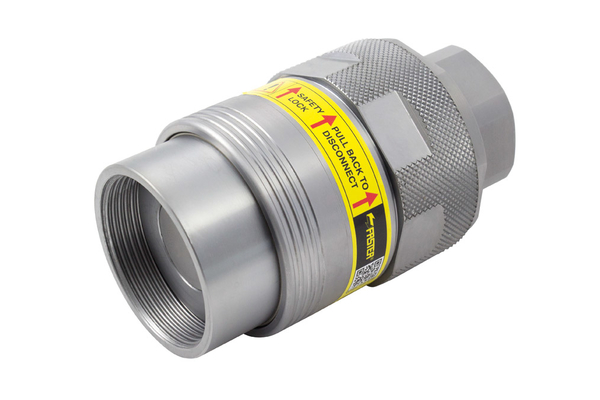

Faster Flat-Face FHV female coupling

Detail

Size
2
3
4
4
4
6
6
6
6
6
6
8
8
8
3
8
8
DN
10
12
20
20
20
25
25
25
25
25
25
32
32
38
40
38
12
40
40
Size
06
08
12
12
12
16
16
16
16
16
16
20
20
24
24
24
08
24
24
Inch
3/8
1/2
3/4
3/4
3/4
1
1
1
1
1
1
1.1/4
1.1/4
1.1/2
1.1/2
1.1/2
1/2
1.1/2
1.1/2
working pressure [bar]
530
530
460
460
460
530
530
530
530
530
530
460
460
460
460
460
530
460
460
Thread + standard
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
SAE (UNF) female-thread ORB ISO 11926-1
Metric flange ISO 6162-1
BSP female-thread ISO 1179-1
Metric flange ISO 6162-1
BSP female-thread ISO 1179-1
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
BSP female-thread ISO 1179-1
SAE flange-head ISO 6162-2
NPT female-thread ANSI B1.20.3
Metric flange ISO 6162-1
Metric flange ISO 6162-1
Thread [GA]
3/8
1/2
3/4
1
3/4
1
1.1/4
1.5/16
1
1.1/4
1.1/4
1.1/4
1.1/4
1.1/2
1.1/2
1.1/2
1/2
1.1/4
1.1/2
Outer Ø sleeve [mm]
48,0
55,0
64,0
64,0
64,0
74,0
74,0
74,0
81,2
74,0
94,6
74,0
74,0
100,0
100,0
100,0
55,0
94,6
113,3
Length sleeve [mm]
101,8
109,7
129,5
129,5
129,5
138,0
138,0
138,0
158,0
138,0
159
146,7
146,7
170,4
170,4
236
109,7
181,0
192,0
SW2 [mm]
34
41
46
46
46
50
55
55
55
50
55
55
55
65
60
65
41
65
65
SW1 [mm]
34
41
46
55
55
65
SW2 [mm]
45
52
60
70
70
95
SW1 [mm]
45
52
60
60
60
70
70
70
70
70
70
70
70
95
95
95
52
95
95
l/min at ΔP=2 bar
32
70
120
120
120
200
200
200
200
200
200
350
350
420
420
420
70
420
420
Quantity


Product info

  • Technical data
    Applications: construction machines, industry, vehicle & road machines
    Female or male coupling: Sleeve
    Material Casing: Steel
    Material sealing: FKM & PUR
    Resistance against red rust [h]: 1000
    Surface: MATE 1000 (ZnNi)
    Temperature range [°C]: -25 °C to +100 °C
