SK-FHV06BSP10M
SK-FHV (female)

Product info

• Technical data

  Size:	2
  DN:	10
  Size:	06
  Inch:	3/8
  working pressure [bar]:	530
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	3/8

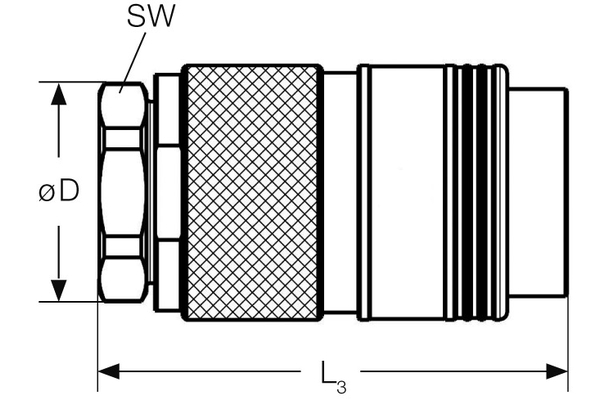

  Outer Ø sleeve [mm]:	48,0
  Length sleeve [mm]:	101,8
  SW2 [mm]:	34
  SW1 [mm]:	34
  SW2 [mm]:	45
  SW1 [mm]:	45
  l/min at ΔP=2 bar:	32
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
