Product info
-
Technical data

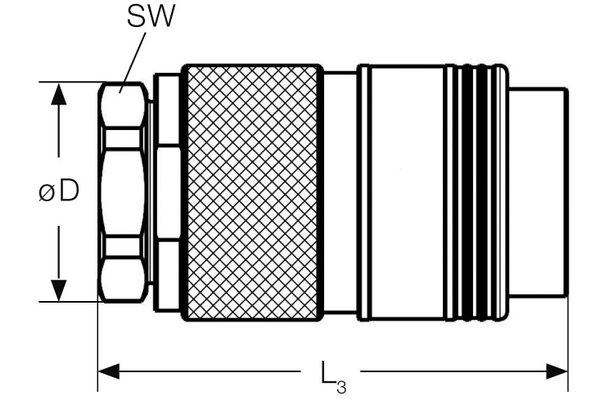

DN: 38 Size: 24 Inch: 1.1/2 working pressure [bar]: 460 Thread + standard: NPT female-thread ANSI B1.20.3 Thread [GA]: 1.1/2 Outer Ø sleeve [mm]: 100,0 Length sleeve [mm]: 170,4 SW2 [mm]: 65 SW1 [mm]: 95 l/min at ΔP=2 bar: 420 Applications: construction machines, industry, vehicle & road machines Female or male coupling: Sleeve Material Casing: Steel Material sealing: FKM & PUR Resistance against red rust [h]: 1000 Surface: MATE 1000 (ZnNi) Temperature range [°C]: -25 °C to +100 °C
