SK-FHV16BSP25M
SK-FHV (female)

Product info

• Technical data

  Size:	6
  DN:	25
  Size:	16
  Inch:	1
  working pressure [bar]:	530
  Thread + standard:	BSP female-thread ISO 1179-1
  Thread [GA]:	1

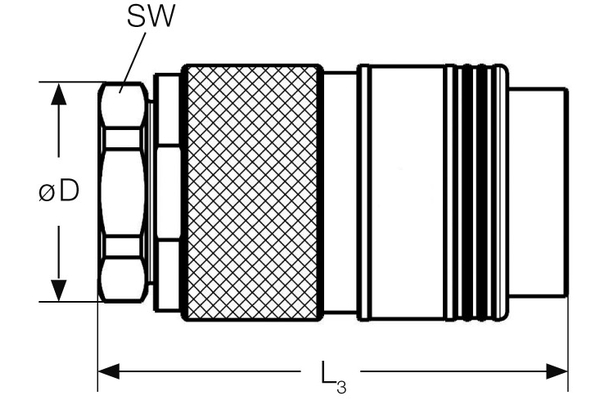

  Outer Ø sleeve [mm]:	74,0
  Length sleeve [mm]:	138,0
  SW2 [mm]:	50
  SW1 [mm]:	55
  SW2 [mm]:	70
  SW1 [mm]:	70
  l/min at ΔP=2 bar:	200
  Applications:	construction machines, industry, vehicle & road machines
  Female or male coupling:	Sleeve
  Material:	carbon steel
  Material Casing:	Steel
  Material sealing:	FKM & PUR
  Resistance against red rust [h]:	1000
  Surface:	MATE 1000 (ZnNi)
  Temperature range [°C]:	-25 °C to +100 °C
