Product info
-
Technical data

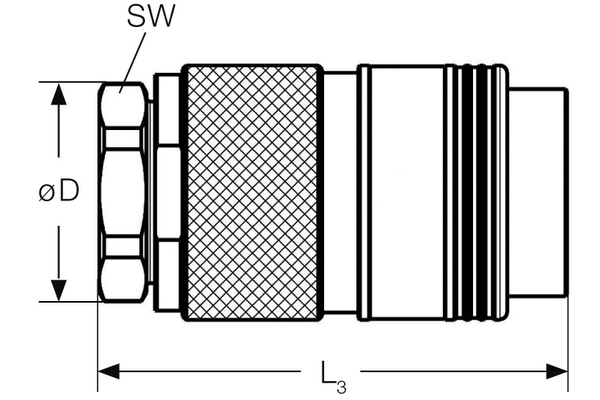

Size: 6 DN: 25 Size: 16 Inch: 1 working pressure [bar]: 530 Thread + standard: Metric flange ISO 6162-1 Thread [GA]: 1.1/4 Outer Ø sleeve [mm]: 94,6 Length sleeve [mm]: 159 SW2 [mm]: 55 SW1 [mm]: 70 l/min at ΔP=2 bar: 200 Applications: construction machines, industry, vehicle & road machines Female or male coupling: Sleeve Material Casing: Steel Material sealing: FKM & PUR Resistance against red rust [h]: 1000 Surface: MATE 1000 (ZnNi) Temperature range [°C]: -25 °C to +100 °C
