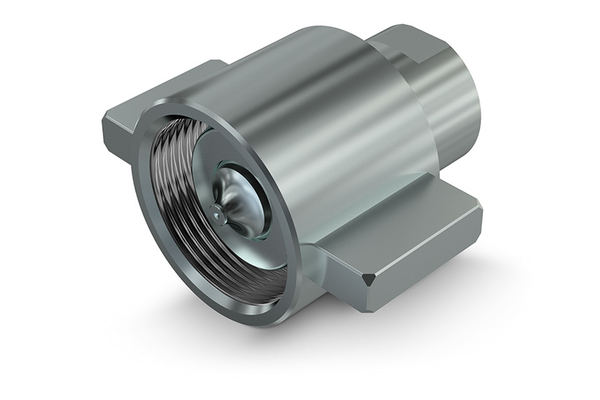

OGV female coupling

Similar image
Similar image

Screw to connect couplings for oil & gas application, market interchange

To accessories

Detail

Art. No.
OGV12 34NPS F
%
SALE
OGV16 1NPS F
%
SALE
OGV20 114NPT F
%
SALE
OGV24 112NPT F
%
SALE
OGV32 2NPT F
%
SALE
DN
20
25
25
38
50
Size
12
16
20
24
32
working pressure [bar]
350
350
350
350
350
Thread + standard
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
NPT female-thread ANSI B1.20.3
Thread [GA]
3/4"
1"
1.1/4"
1.1/2"
2"

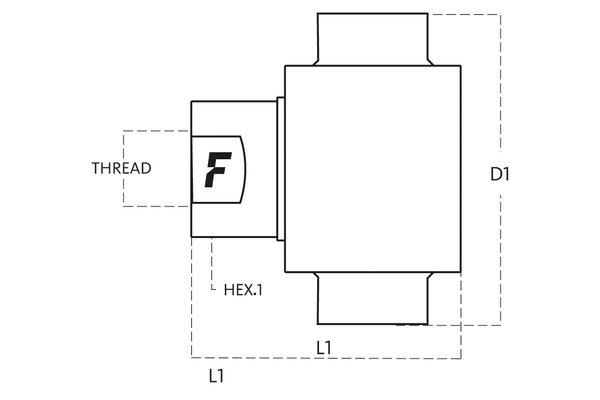

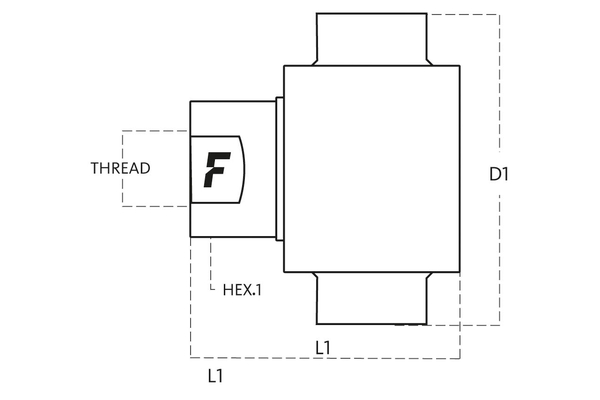

Outer Ø sleeve [mm]
55,0
105,5
118,2
147,0
170,0
Length sleeve [mm]
72,2
87,6
111,9
127,1
154,2
SW [mm]
32
41
50
55
75
SW1 [mm]
32
41
50
55
75
l/min at ΔP=2 bar
120
230
320
330
570
Quantity


Product info

  • Technical data
    Applications: Oil & Gas, Industrial, construction equipment
    Female or male coupling: sleeve
    Material Casing: Steel
    Material sealing: NBR & PUR
    Resistance against red rust [h]: 500
    Surface: Mate 500 (Cr III)
    Temperature range [°C]: -25 °C to 100 °C

Benefit

Standard screw-to-connect coupling suitable for Oil & Gas applications. Robust sleeve design, poppet valve and ACME connection thread.
