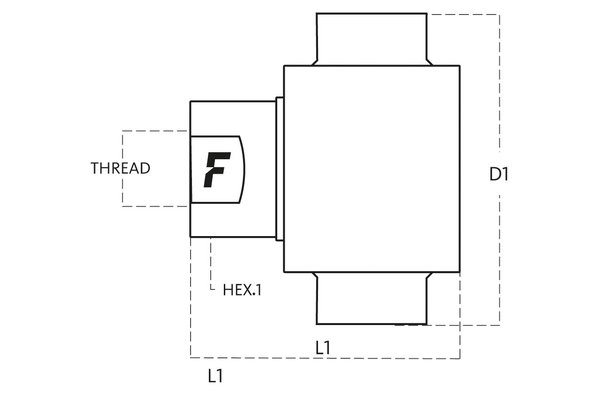

OGV32 2NPT F
Faster OGV-sleeve

Product info

• Technical data

  DN:	50
  Size:	32
  working pressure [bar]:	350
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	2"
  Outer Ø sleeve [mm]:	170,0
  Length sleeve [mm]:	154,2
  SW [mm]:	75
  SW1 [mm]:	75
  l/min at ΔP=2 bar:	570
  Applications:	Oil & Gas, Industrial, construction equipment
  Female or male coupling:	sleeve
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	500
  Surface:	Mate 500 (Cr III)
  Temperature range [°C]:	-25 °C to 100 °C
