OGV24 112NPT F
Faster OGV-sleeve

Product info

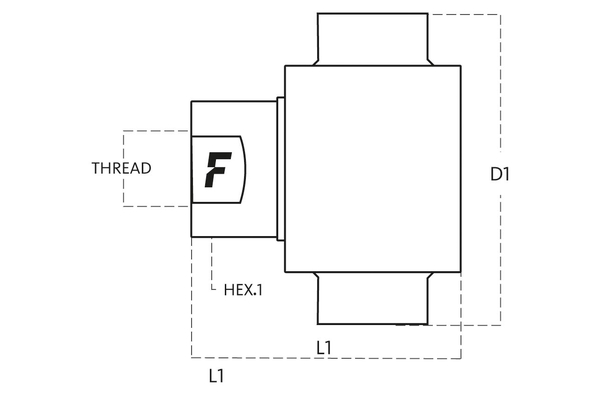

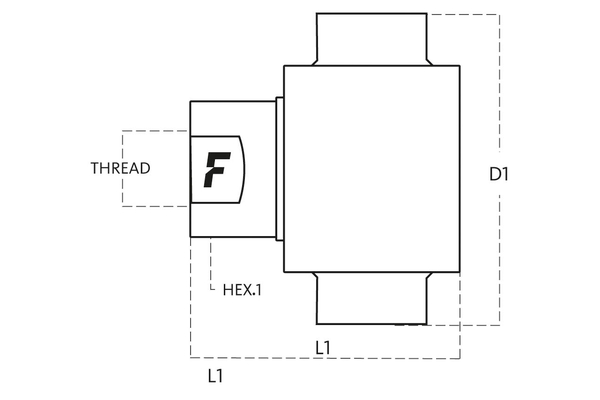

• Technical data

  DN:	38
  Size:	24
  working pressure [bar]:	350
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	1.1/2"
  Outer Ø sleeve [mm]:	147,0
  Length sleeve [mm]:	127,1
  SW [mm]:	55
  SW1 [mm]:	55
  l/min at ΔP=2 bar:	330
  Applications:	Oil & Gas, Industrial, construction equipment
  Female or male coupling:	sleeve
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	500
  Surface:	Mate 500 (Cr III)
  Temperature range [°C]:	-25 °C to 100 °C
