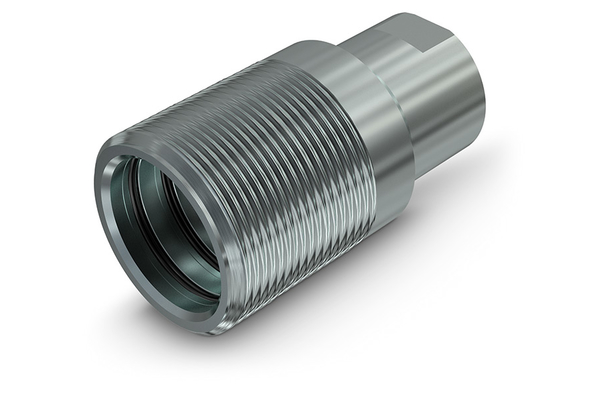

OGV12 34NPS M
Faster OGV-plug

Product info

• Technical data

  DN:	20
  Size:	12
  working pressure [bar]:	350
  Thread + standard:	NPT female-thread ANSI B1.20.3
  Thread [GA]:	3/4"

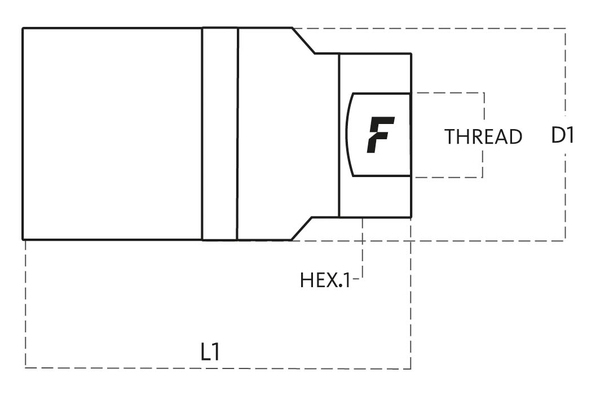

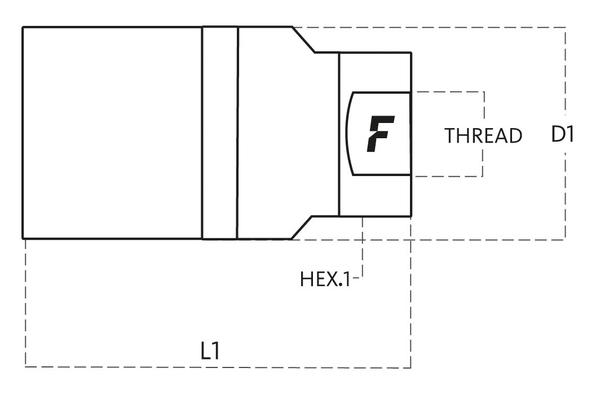

  Outer Ø plug [mm]:	44,25
  Length plug [mm]:	83,1
  SW [mm]:	32
  SW1 [mm]:	32
  l/min at ΔP=2 bar:	120
  Applications:	Oil & Gas, Industrial, construction equipment
  Female or male coupling:	Plug
  Material Casing:	Steel
  Material sealing:	NBR & PUR
  Resistance against red rust [h]:	500
  Surface:	Mate 500 (Cr III)
  Temperature range [°C]:	-25 °C to 100 °C

Benefit
