Product info
-
Technical data

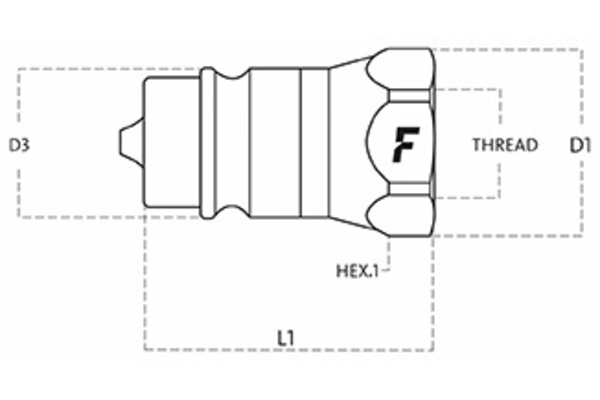

Size: 3 DN: 12 Inch: 1/2 working pressure [bar]: 250 Thread + standard: BSP female-thread ORB BS 5380 Thread [GA]: 1/2 Outer Ø plug [mm]: 20,5 Length plug [mm]: 47 SW [mm]: 27 SW1 [mm]: 27 l/min at ΔP=2 bar: 60
