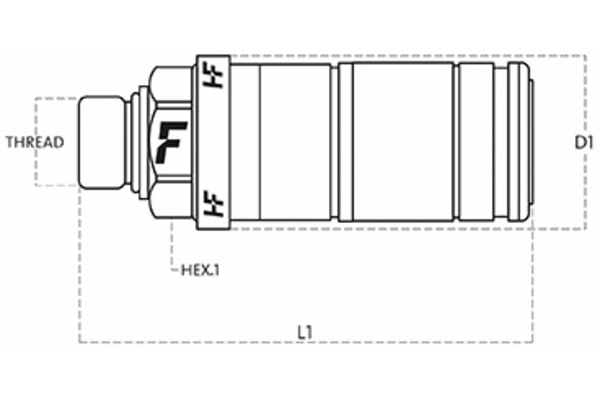

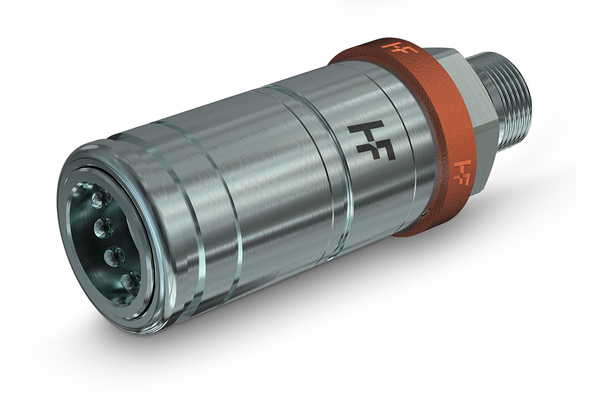

3CFHF female coupling

Push-pull female couplings for agriculture with higher flow rate, up to 250 l/min

To accessories

Detail

Art. No.

3CFHF0821/2215 F

3CFHF081/1815 F

3CFHF081/2215 F

3CFHF08 12GAS F

3CFHF08 12NPT F

3CFHF0819/2215 F

3CFHF087/1815 F

3CFHF087/2215 F

Size

Inch

1/2

working pressure [bar]

250

Thread + standard

Metric screw-in thread elastic seal ISO 9974-2

Metric screw-in thread with o-ring ISO 6149-2

metric screw-in thread with o-ring ISO 6149-2

BSP female-thread ISO 1179-1

NPT female-thread ANSI B1.20.3

Metric male-thread banjo bolt DIN 7643

Metric buldkhead short ISO 8434-1-L

Metric bulkhead short ISO 8434-1-L

Thread [GA]

M22x1,5

M18x1,5

M22x1,5

1/2

M22x1,5

M18x1,5

M22x1,5

Pipe Ø R [mm]

12L

15L

Outer Ø sleeve [mm]

42,00

42,0

Length sleeve [mm]

109,2

112,2

109,7

106,2

134,7

121,2

122,4

Can be coupled under pressure

male half up to 250 bar

SW1 [mm]

l/min at ΔP=2 bar

Quantity

Product info

Technical data

Applications:	Agriculture
Female or male coupling:	Sleeve
Material Casing:	Steel
Material sealing:	PUR
Resistance against red rust [h]:	500
Standard:	ISO 7241-A
Surface:	Mate 500 (CrIII)
Temperature range [°C]:	-25 °C to 100 °C

Benefit

Push-pull coupling for high flow rate applications, connectable with male under residual pressure. Breakaway function. Can be screwed directly into valve ports or rigid pipes. ISO 7241 part A interchange. Flow rate up to 250 l/min.
