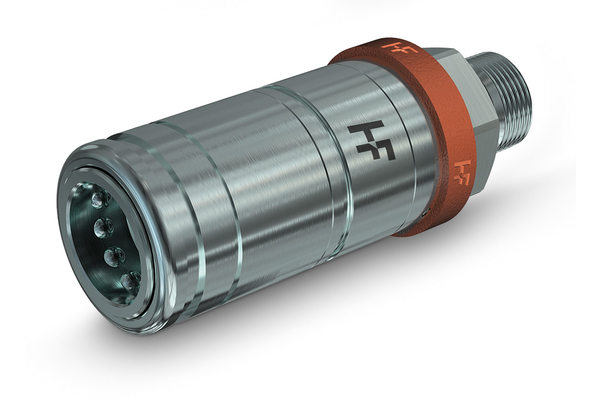

3CFHF0822/12G FL
Faster 3CFHF-Sleeve

Product info

• Technical data

  Size:	3
  DN:	12
  Size:	08
  Inch:	1/2
  working pressure [bar]:	250
  Thread + standard:	BSP Außengewinde
  Thread [GA]:	1/2"

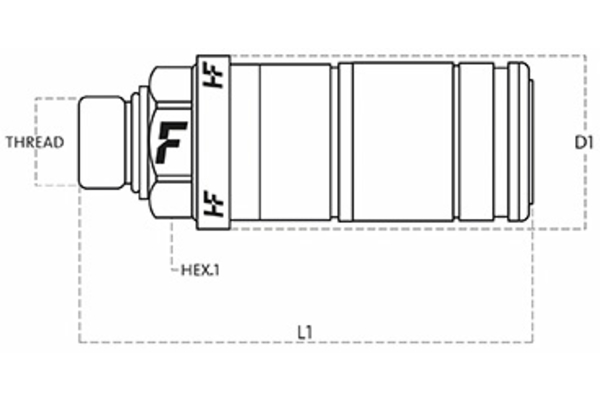

  Outer Ø sleeve [mm]:	38,0
  Length sleeve [mm]:	111,2
  SW1 [mm]:	32
  l/min at ΔP=2 bar:	70
  Applications:	Agriculture
  Female or male coupling:	Sleeve
  Material Casing:	Steel
  Material sealing:	PUR
  Resistance against red rust [h]:	500
  Standard:	ISO 7241-A
  Surface:	Mate 500 (CrIII)
  Temperature range [°C]:	-25 °C to 100 °C
