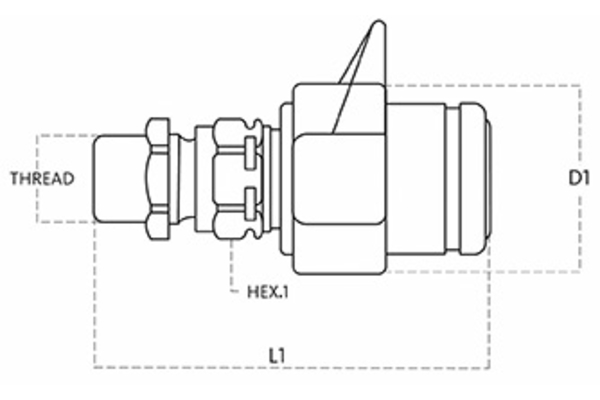

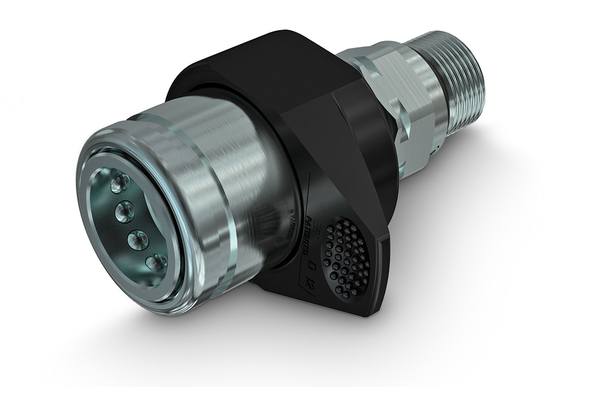

3CNV female coupling

Detail

Art. No.
Size
3
3
DN
12
12
Size
08
08
Inch
1/2
1/2
working pressure [bar]
250
250
Thread + standard
Metric male with sealing ISO 1179-3
ORFS (UN) bulkhead ISO 8434-3
Thread [GA]
M22x1,5
13/16
Outer Ø sleeve [mm]
48
48,0
Length sleeve [mm]
89,0
109,0
SW [mm]
27
27
SW2 [mm]
27
SW1 [mm]
27
27
l/min at ΔP=2 bar
75
75
Quantity
