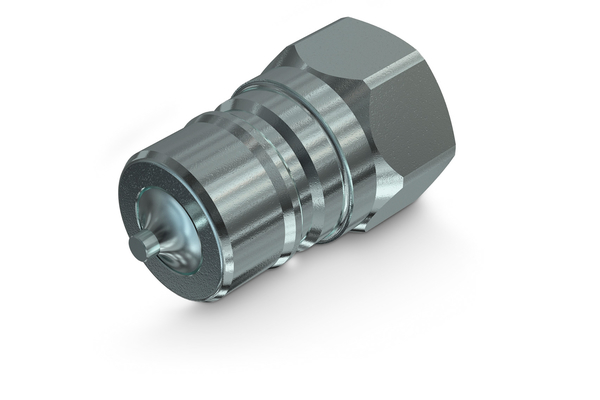

Art. No.: ANV 34-34SAE M
List number: 22101250
Reference couplings for agricultural applications, but also used extensively in construction and industry. Sealing system with cone valve. Connection not permitted under pressure. Interchangeability according to ISO 7241-A standard.

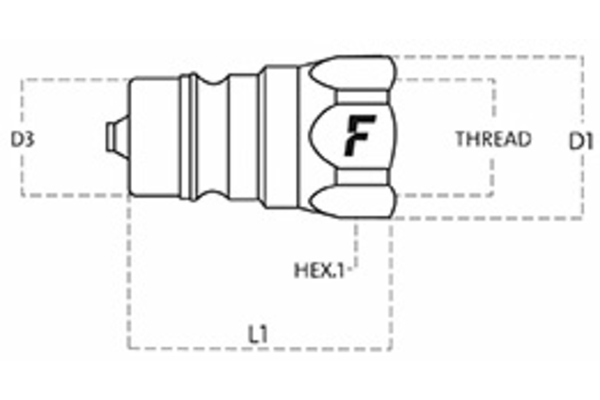

| Size: | 4 |
| DN: | 20 |
| Size: | 12 |
| Inch: | 3/4 |
| Working pressure [bar]: | 300 |
| Thread + standard: | SAE (UNF) internal thread with O-Ring port ISO 11926-1 |
| Thread [GA]: | 1.1/16 |
| Outer Ø plug [mm]: | 29,0 |
| Length plug [mm]: | 55,0 |
| SW [mm]: | 34 |
| SW1 [mm]: | 34 |
| l/min at ΔP=2 bar: | 180 |
| wrong type: | false |
Reserve technical changes.
