Product info
-
Technical data

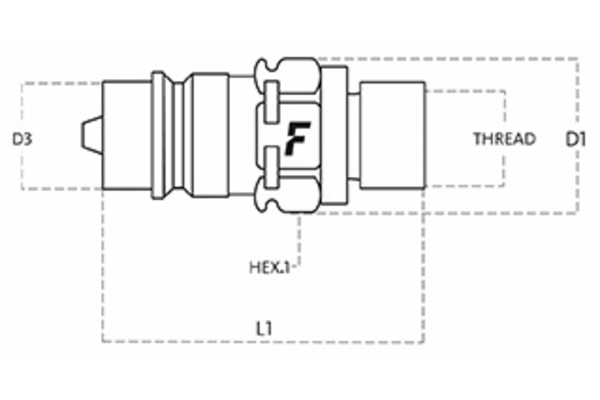

Size: 3 DN: 12 Size: 08 Inch: 1/2 working pressure [bar]: 250 Thread + standard: Metric female-thread ORB ISO 6149-1 Thread [GA]: M16x1,5 Outer Ø plug [mm]: 20,5 Length plug [mm]: 57,0 SW [mm]: 27 SW1 [mm]: 27 l/min at ΔP=2 bar: 75 Applications: Agriculture Female or male coupling: Plug Material Casing: Steel Material sealing: NBR Resistance against red rust [h]: 500 Standard: ISO 7241-1A Surface: Mate 500 (CrIII) Temperature range [°C]: -25 °C to 125 °C
